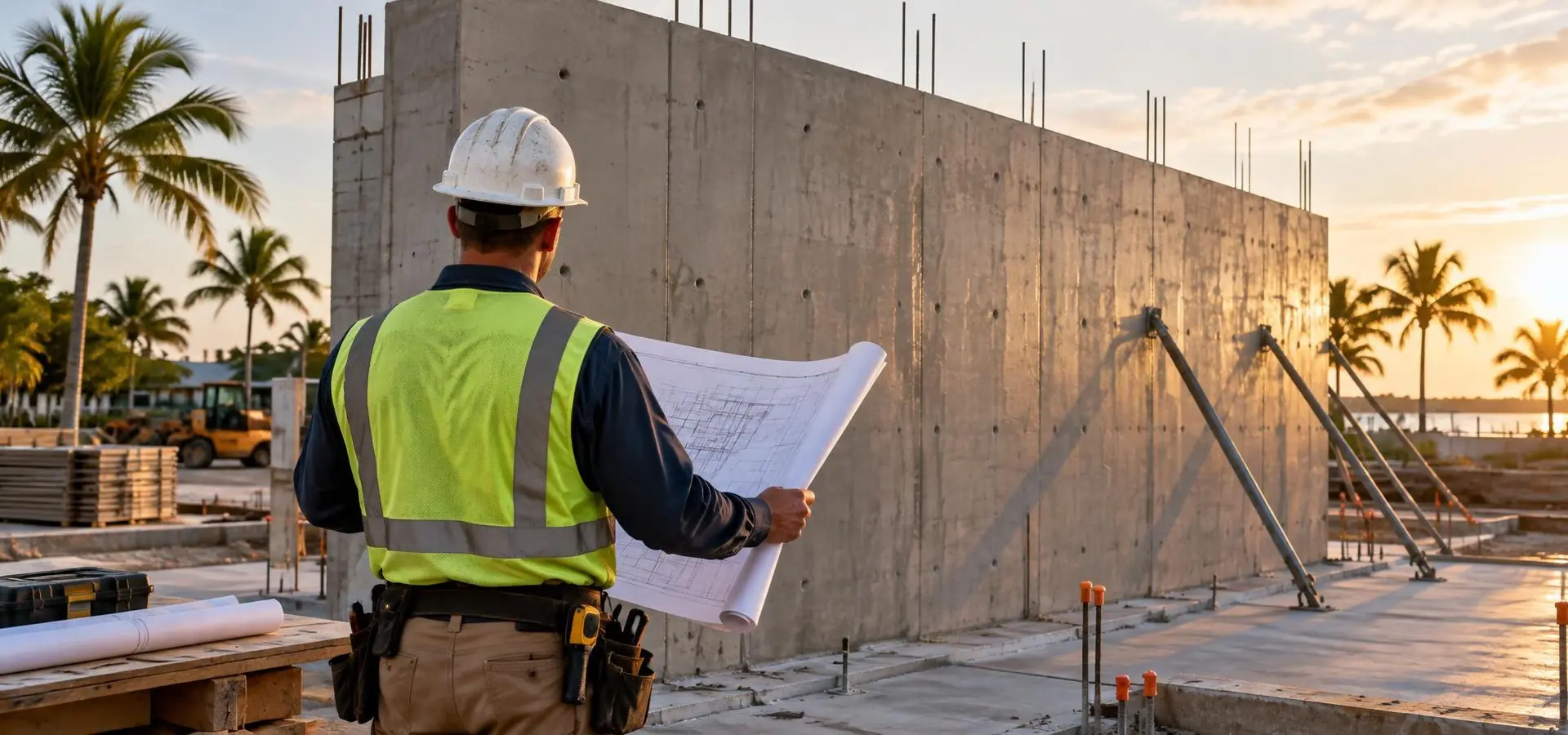

A builder reviewing plans in front of a printed concrete wall

Building With Printed Shells: A Builder's Guide

A practical walk-through for GCs and builders. The structure of the relationship, what we need from you, what we hand back, and how the schedule actually runs.

Current status

Coastal Monolithic is pre-construction. No lots are locked and no permits are filed. The first printed shell is planned as part of the model home, targeting a Q1 2027 break-ground contingent on funding, site, equipment, engineering, and permits. The scheduling steps below describe how a print window works once a project is confirmed.

Go Deeper

For the full technical scope, site requirements, clearances, and loads, pair this guide with the shell contractor spec page.

Shell Contractor Specs

You stay the contractor of record. We stay the shell sub.

The relationship is a standard specialty subcontract. Your licensed firm holds the contract with the owner and serves as contractor of record. Coastal Monolithic delivers the printed concrete shell as a subcontractor to you. Nothing about your responsibility for the project, the schedule, or the closeout changes.

Your scope, unchanged
  • Contract with the owner and serve as contractor of record
  • Pull the permit and manage inspections
  • Site work, foundation, and all site logistics
  • Roofing, MEP, windows, doors, and interior finishes
  • Schedule the trades and own the master schedule
  • Closeout and certificate of occupancy
Our scope, in the shell
  • The printed monolithic concrete wall system, from foundation base to the roof line
  • Interior load-bearing walls printed with the shell
  • Provision in the wall assembly for the project insulation strategy, per the design
  • All window and door openings as drawn
  • Technical documentation for your permit package
  • Coordination on every interface point

We are not a GC and we do not want to be one. Our value to you is a stronger shell delivered faster, with the documentation your engineer and building department need. Your crew and your relationships run everything after the handoff.

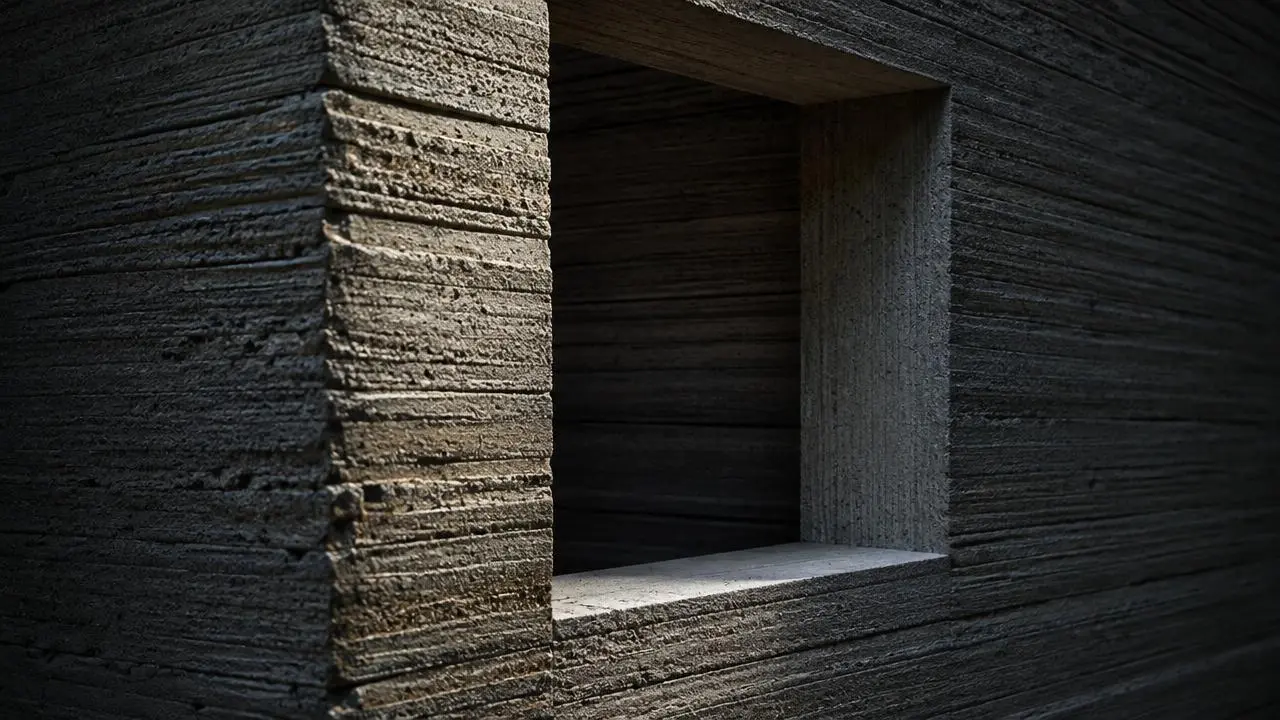

Printed concrete wall with a formed opening

What to line up before anyone prints

Nine items. Get these aligned in design and the print phase is uneventful, which is exactly what you want.

01

Engineer of record: a Florida-licensed PE engaged for the project, coordinating wall design, reinforcement, and connections

02

Foundation interface: the connection detail between the printed wall and the foundation, designed and drawn before mobilization

03

Roof bearing and the roof-to-wall connection, coordinated with the truss or roof engineer

04

Opening schedule: every window and door sized, located, and reflected in the print model

05

MEP penetrations and chases: locations fixed in the print model before the file is finalized

06

Site access and logistics: gantry path, concrete delivery, and staging agreed with the site super

07

Grading and finished floor elevations confirmed against the printed wall base

08

Utility and power availability on site for the print window

09

Sequence and schedule: the print window locked against the trades that follow

Design constraints worth knowing early

A printed shell is flexible, but it is not infinite. These are the constraints that shape a design, and the earlier they are understood, the fewer surprises in the print plan.

01

Openings

Windows and doors print as rough openings, sized and located in the model. Larger openings need headers and reinforcement designed for the load. Layout the opening schedule early so the print model and the structural design agree.

02

Wall heights

Wall height drives the machine setup and the reinforcement design, and taller walls take longer to print and cure. Heights are confirmed with the structural design, not assumed on site.

03

Curved geometry

Curves are one of the advantages of printing, and they are also where lead time grows. Complex curves take more modeling and coordination. Bring curved layouts in early, because they add design time before they add print time.

04

Lead times

Design-to-print-ready runs in days for simple plans and longer for complicated geometry. Everything downstream, foundations and framing included, schedules against that. Treat the print-ready date like any other gate in the master schedule.

How a print window gets scheduled

01

Project review and fit

We review the plans, the site, and the schedule, and confirm the project fits the platform. If it does not, we say so before anyone commits.

02

Design to print-ready

We convert the design into a print model and coordinate the engineering and MEP layout. This is the gate that everything else schedules against.

03

Site readiness

Foundation complete and cured, site level and clear, access and power confirmed. The print window opens when the site is genuinely ready.

04

Mobilization

When a project is scheduled, the gantry is mobilized and positioned. This is a 1 to 2 day setup window before printing begins.

05

Print and cure

The shell is printed, then cures. Once strength and inspection are accepted, the printed wall system is ready for the subsequent trades. Your crew uses this window to stage materials and prep the trades that follow.

06

Handoff walkthrough

A joint walkthrough verifies the shell and the openings, documents condition, and formally hands the shell to you.

After the shell, it is standard residential work

This is the part builders care about most, and the good news is how ordinary it is. Once the printed wall system is complete and its strength and inspection are accepted, the trades that follow are the same trades you already use on a concrete or ICF job. Nobody needs to learn a proprietary system. The work printed is the wall system; roofing, windows, doors, and MEP stay with your crews.

The one rule is sequencing: MEP penetrations and chases are fixed in the model before the print, so the electrician and plumber are working against a plan, not chasing the wall after the fact.

01
Roofing. The roof system installs over the shell, connecting at the engineered roof-to-wall detail.
02
Rough-in trades. Electrical, plumbing, and HVAC rough in the same way as any concrete structure, against the planned layout.
03
Interior framing and drywall. Interior partitions frame conventionally, and drywall covers the interior face of the concrete wall.
04
Openings and finishes. Windows, doors, flooring, cabinetry, trim, and paint are business as usual for your crews.
05
Exterior finishes. The exterior surface takes the specified coating system. That is a finish decision made at design.

What builders ask first

How does the builder subcontracting process work with Coastal Monolithic?

Coastal Monolithic delivers the structural shell. Your existing subcontractor relationships handle everything after the shell is enclosed. The model is designed to slot into a builder's existing workflow, not replace it. Coastal Monolithic mobilizes the robotic printing system, batches and delivers the concrete mix, prints the full wall system, and provides the technical documentation package. From that point, the builder's MEP, roofing, window, door, and interior finish subs take over exactly as they would on any concrete construction project. There is no proprietary subcontractor network you are required to use. The shell is the handoff point. Builders who have worked with ICF or tilt-up concrete will find the post-shell workflow familiar.

Can builders partner with Coastal Monolithic?

Yes, and builder partnerships will be the primary model. Coastal Monolithic is actively building its Southwest Florida builder network for the 2026 to 2028 pipeline. The model is straightforward: the builder manages the full project (permitting, subcontractor coordination, and certificate of occupancy). Coastal Monolithic delivers the printed concrete shell as a specialty subcontractor. The builder's existing subcontractor relationships handle everything after the shell is enclosed. Builders who have worked with ICF, tilt-up, or CBS construction will find the post-shell workflow familiar. Reach out directly if you are a licensed GC or builder in Collier, Lee, Charlotte, Sarasota, Manatee, or Pinellas County and want to add a monolithic concrete shell to your pipeline.

What finishes are needed after the shell is printed?

After the shell is printed and the curing verification is complete, the project transitions to standard residential construction sequencing. The finish work required is the same as any concrete or ICF home: (1) Roofing system: truss or rafter system, sheathing, underlayment, and roofing material. (2) Windows and exterior doors. (3) MEP rough-in: electrical, plumbing, and HVAC. (4) Interior partition walls: typically light-gauge steel or wood framing. (5) Drywall on interior faces of the concrete walls and partition walls. (6) Flooring, cabinetry, trim, and paint. (7) Fixture installation and final MEP connections. (8) Landscaping and site work. Final inspections and the certificate of occupancy come at the end. None of these trades are proprietary or require specialized knowledge of 3D printing. Any subcontractor experienced with concrete or ICF construction can work on a 3D printed shell. The shell is the handoff point, and everything after it is standard residential construction. The builder's existing subcontractor relationships and scheduling process apply from the shell handoff forward, and Coastal Monolithic provides the technical documentation package to support permitting and inspection throughout.

Do I need special subcontractors to finish a 3D printed concrete home?

No. The interior and exterior finish trades for a 3D printed concrete home are the same trades used in any concrete construction project. Electricians, plumbers, HVAC contractors, roofers, window installers, drywall crews, and finish carpenters all work the same way they would on a conventional concrete or ICF home. The concrete shell provides the structural substrate. Conduit and plumbing rough-in are planned during the design phase and accommodated in the print. There is no proprietary system that requires specialized subcontractors. If your subs have worked on concrete construction before, they can work on a 3D printed shell.

See all FAQs
Coastal Florida landscape at twilight

Ready to add a printed shell to your pipeline?

Send us a project, a lot, or a plan set. We will review the fit, the site, and the schedule, and tell you honestly whether the shell works for it.
