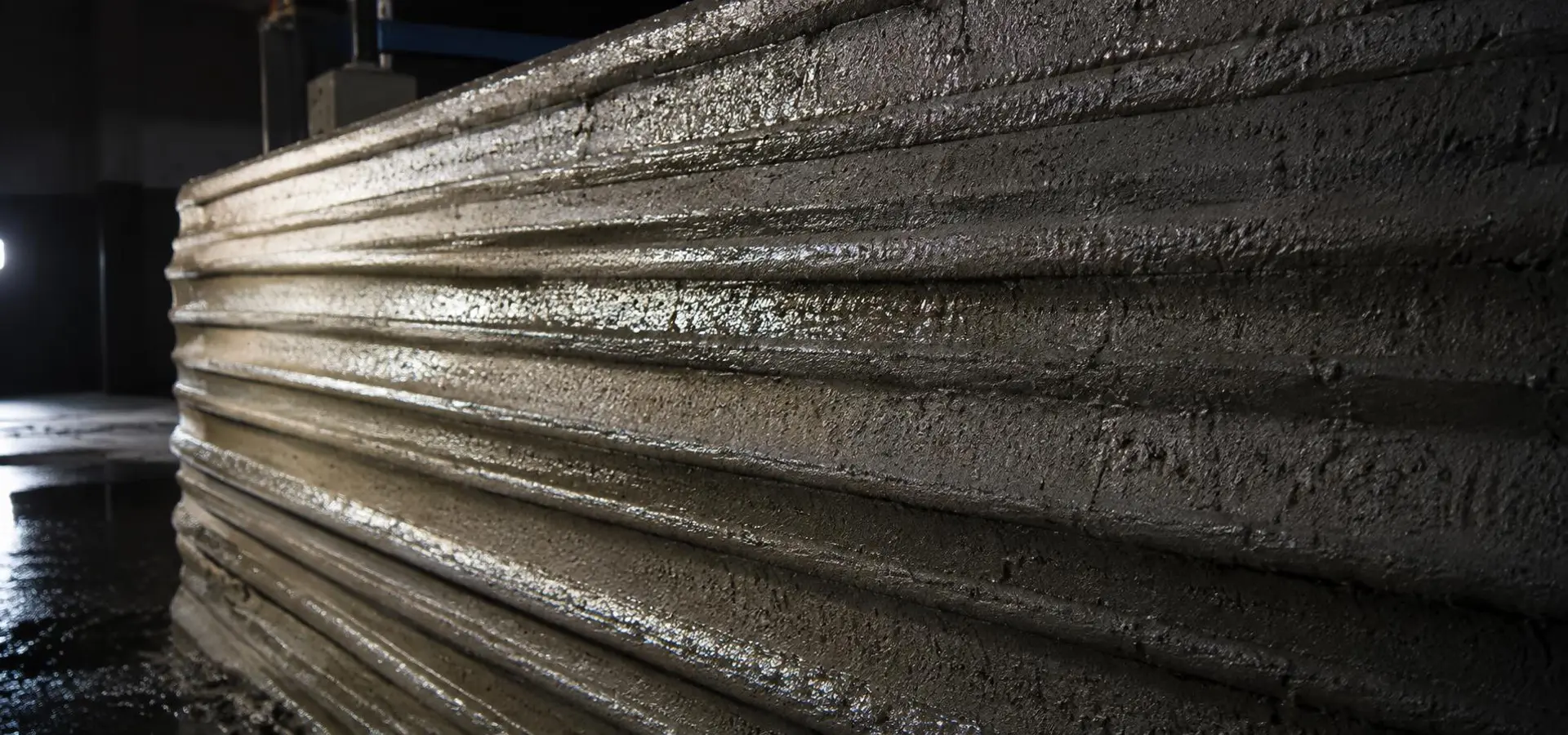

Fresh extruded concrete forming a layered wall

The Material Science of 3D Printed Concrete

Past the headline strength number, the real story is what the mix has to do that ordinary concrete never has to do.

7 min readProcess & TechnologyPublished October 2026
Quick Answer

Printable concrete is not ready-mix with extra water. It is formulated to hold its shape the moment it leaves the nozzle, bond to the layer below it, and still cure into a strong wall. The mix, the admixtures, the reinforcement, and the curing protocol all have to work together. Get any one of them wrong and the wall suffers, even if the strength number on paper looks good.

Why printable concrete is a different animal

Ready-mix is designed to be poured. It flows into a form, and the form holds it until it sets. Printable concrete has no form. It has to stand up on its own the second it is placed, layer on top of layer, with no support on either side. That single constraint changes everything about the mix.

01
Rheology and pumpability

The mix has to move through a pump and a hose without separating or clogging, then stiffen fast enough to hold a bead. It is a narrow window between flowable and self-supporting.

02
Controlled set time

The material cannot set in the hose, and it cannot stay soft once placed. Set time is managed deliberately, often with accelerators, so each layer reaches enough stiffness before the next one lands.

03
Interlayer bonding

The wall is many layers stacked together. Where those layers meet is the material's weakest plane, so the mix and the timing are tuned to keep each layer bonding to the one below.

04
Shape stability under its own weight

A tall wall accumulates load with every pass. The mix has to resist slumping and sagging as it builds, which is a material property, not a machine trick.

The strength number gets the attention, but it is the mix behavior before the concrete sets that decides whether a printed wall works.

Admixtures do the quiet work

Admixtures are the small additions that tune the mix. In printed concrete they are not optional extras. They are how the material meets a requirement that ordinary concrete does not face.

  • Rheology modifiers that hold the mix together as it is extruded
  • Accelerators that set each layer quickly enough to carry the next
  • Retarders that keep the material workable in Florida heat until it is placed
  • Water reducers that keep the mix strong without making it too wet to stand

The exact blend is part of the platform, and it is matched to local conditions. A mix tuned for a dry climate is not the same mix you want in Florida humidity. The mix is set by the platform and the project engineer, not guessed on site.

Reinforcement: steel inside the printed wall

Concrete is strong in compression and weak in tension, which is why structural concrete elements are reinforced with steel. A printed wall is no exception, and the way the steel goes in is one of the more thoughtful parts of the system.

01
Vertical voids and steel. The print geometry leaves vertical voids in the wall. Steel is placed into those voids and the concrete around it locks the reinforcement into the wall as one composite element.
02
Designed by the structural engineer. How much steel, where it goes, and how it ties into the foundation and the roof is structural engineering, done for the specific project by a licensed Florida engineer.
03
A continuous load path. The steel is part of the load path that carries wind uplift from the roof down to the foundation. That path is a design decision, not a default.

Curing in Florida heat and humidity

Curing is where a good mix can still be undone by the weather. Concrete does not dry. It cures, a chemical reaction that needs moisture and responds to temperature. Florida hands you heat and humidity, and both push on that reaction.

Heat speeds up curing, and curing too fast can cost strength and invite early cracking. The surface can dry out before the interior finishes reacting. The response is a curing protocol matched to the conditions: managing surface moisture, protecting the fresh wall from the harshest part of the day, and confirming the wall reached the strength the design assumed.

There is a reason the strength mix and the curing plan are decided together. In this climate, they are the same conversation.

Where the performance figures come from

It is worth being precise about how performance language should be read. The wall system technology is developed by a third-party additive construction platform that Coastal Monolithic operates as a licensee. Any demonstrated figures published elsewhere describe that platform's tested assemblies and its completed projects, not our own builds. Coastal Monolithic is pre-construction, with a model home targeting a Q1 2027 break-ground.

We do not restate a headline number here, because a figure only means something when it is tied to a specific report covering the actual platform, material, and assembly, with a defined test method and date. Where that documentation is available for a specific system, we reference it project by project.

Every project still gets its own engineering, its own mix confirmed for local conditions, and its own inspection. Concrete mix design, interlayer bonding, and curing are governed by project-specific specifications, not by a marketing figure.

Primary technical references: ACI 318 (Building Code Requirements for Structural Concrete); ACI 549.3R (Report on Additive Manufacturing with Cement-Based Materials); ASTM C39/C39M (Compressive Strength of Cylindrical Concrete Specimens); ASTM C1437 (Flow of Hydraulic Cement Mortar). The governing references for a specific project are set by the engineer of record.

Material Questions

What is the biggest problem with 3D printing in construction?

The most significant challenges in 3D printed construction are permitting, financing, and market familiarity, not the technology itself. The technology has a documented track record: the licensed 3D concrete printing platform Coastal Monolithic operates has completed structures in North America, including residential and other deployments. The practical challenges are: (1) Permitting requires independent code documentation or an equivalent engineering pathway, which not all 3D printing companies have. (2) Appraisers and lenders are still developing familiarity with the product. (3) The construction industry is conservative, and adoption takes time. Coastal Monolithic addresses the permitting challenge with project-specific engineering and technical documentation. The financing and market familiarity challenges will improve as completed projects establish a track record in Southwest Florida.

Do 3D printed homes crack?

All concrete can develop minor surface cracks over time, particularly hairline cracks from thermal expansion and contraction. This is normal for concrete and does not indicate structural failure. The key distinction is between cosmetic surface cracking and structural cracking. The monolithic, jointless construction method used by Coastal Monolithic eliminates the most common crack initiation points in conventional construction: mortar joints, framing connections, and material transitions. The high-strength mix is more resistant to cracking than standard concrete. Structural cracking in a properly designed and constructed concrete home is rare. Any surface cracks that do appear are typically cosmetic and can be addressed with standard concrete repair methods.

How long will a 3D printed house last?

A properly constructed 3D printed concrete home is designed for a long service life, comparable to a well-built concrete structure, provided the concrete mix, construction quality, and building-envelope upkeep are all maintained. The material has no inherent expiration; longevity depends on those factors. The monolithic, jointless construction removes several of the failure points that degrade conventional homes: no mortar joint to crack, no wood framing to rot, and no stucco seam to admit water. Concrete structures built in the mid-20th century are still standing across Florida. We do not publish a specific year figure, because lifespan depends on how the home is built and maintained.

See all FAQs

Want this explained for your project?

The material only matters in the context of an actual build. If you have a project in mind, a lot, a design, a timeline, we can talk through how the mix, the reinforcement, and the curing plan come together for it.
