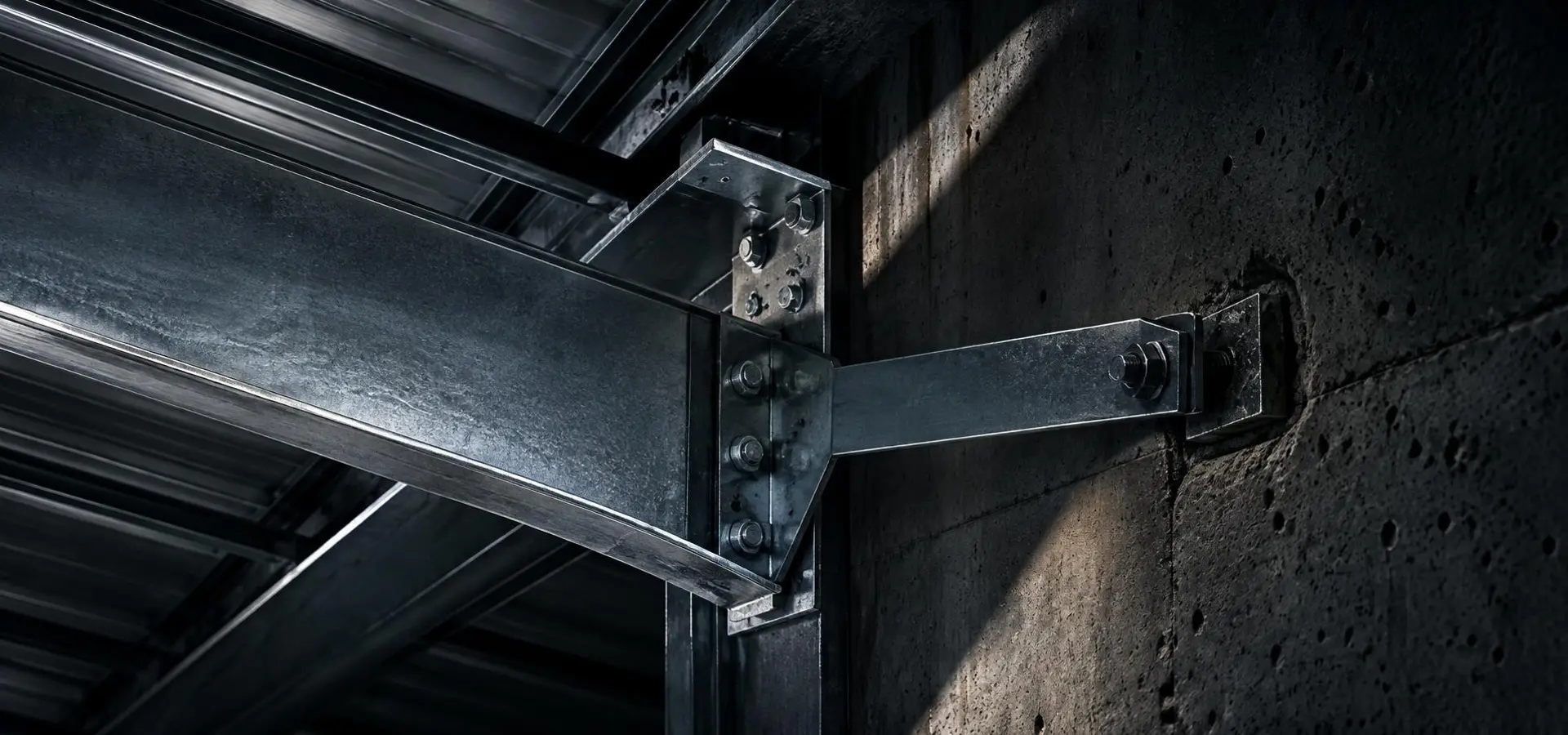

Engineered steel connection between roof framing and a concrete wall

Roof-to-Wall Connection Engineering for Printed Homes

In a hurricane, the wall is usually not what fails first. The connection between the roof and the wall is. This is the page for the people who design and review that connection.

8 min readProcess & TechnologyPublished October 2026
Quick Answer

Storm damage often follows a load path failure, and the roof-to-wall connection is one of the joints where that path is most likely to break. A printed concrete wall is strong in the plane of the wall. Its hurricane value depends on an engineered, continuous connection that ties the roof structure down through the wall and into the foundation. That connection is designed per project by a Florida-licensed structural engineer.

Why the connection governs the outcome

Wind does two things to a house at once. It pushes sideways on the walls, and it lifts upward on the roof. The uplift is the part people underestimate. As wind moves over a roof, pressure drops and the roof is pulled up, and that load travels down through the connection into the walls and the foundation. If the connection holds, the house has a chance. If it does not, the roof leaves and the rest of the envelope follows.

This is why an engineer cares so much about the joint. A monolithic concrete wall has no mortar joints and no stud cavities to open up, which removes a whole category of failure inside the wall itself. But no wall, no matter how strong, helps if the roof is only lightly attached to it. The wall and the connection are two different problems, and they are both solved in the drawings.

A strong wall under a weak connection is still a failed house. The connection is where the structural story is either finished or abandoned.

The continuous load path, start to finish

A continuous load path is a chain of connected elements that carries a force from where it is applied to where it is resisted. For wind uplift on a house, the chain runs from the roof surface down to the soil. Every link has to be designed for the same demand, because the chain is only as strong as its weakest link.

01
Roof covering and sheathing. The roof surface transfers uplift into the sheathing, provided the covering and deck fastening are designed for it.
02
Roof structure to wall. Trusses or rafters connect to the top of the wall through the connection detail, the link this article is about.
03
Wall to foundation. The wall carries the load down into the foundation through dowels, anchor bolts, and the base connection.
04
Foundation to ground. The foundation and the soil resist the load. Foundation design and soil capacity are part of the same path.

The reason this matters for a printed wall is that the wall itself is a strong link, and a strong link is only useful if the links above and below it are designed to match. The engineering task is not to make the wall strong. It already is. The task is to make the whole chain behave as one system.

How connectors and straps get into a printed wall

In wood framing, hardware is nailed or screwed to the members. In a printed concrete wall, the connection is placed differently, and that is a design decision made before the print, not a fix applied after it.

01
Embedded anchors

Anchors and embeds are set into the wall so the concrete cures around them. The print path is planned to leave room for the hardware at the right locations.

02
Voids and steel coordinate with the connection

The vertical reinforcement placed in the printed voids ties into the connection zone, so the hardware and the steel work as one assembly rather than two separate ideas.

03
Strap and hold-down hardware

Straps and hold-downs transfer uplift from the roof structure into the embedded anchors. The hardware is selected by the engineer for the demand at that location.

04
Sequenced with the print

Connections that go in during printing are detailed on the print plan. This is a coordination item between the engineer, the printer operator, and the framing crew, and it is resolved in design.

The honest part: getting hardware into a printed wall is not improvised on site. If a connection is missed in the plan, it is very difficult to add later. That is exactly why this page exists and why the connection is reviewed so early.

Coordination with the truss and roof engineer

The roof is engineered separately from the wall, usually by the truss manufacturer or a roof engineer. The two sides meet at the connection, and the connection only works if both sides agree on the loads and the geometry. That is a coordination requirement, not a formality.

  • The uplift demand at each connection location, consistent between the wall and roof design
  • The hardware type, size, and embedment depth agreed by both engineers
  • Bearing and hold-down locations that line up with the truss layout
  • The sequence for setting hardware relative to printing and framing

Coastal Monolithic is not the engineer of record. We coordinate with the engineer who seals the connection and the roof engineer who designs the framing, and we make sure the print reflects the agreed detail. When that handshake happens in design, the connection works in the field.

Where the performance numbers come from

The wall system technology is developed by a third-party additive construction platform that Coastal Monolithic operates as a licensee. Any demonstrated figures published elsewhere describe that platform's tested assemblies and completed projects, not our own builds. Coastal Monolithic is pre-construction, with a model home targeting a Q1 2027 break-ground. We do not restate a headline number here, because a figure only means something when it is tied to a specific report covering the actual platform, material, and assembly, with a defined test method and date.

A platform figure would describe a tested wall assembly. It would not describe a finished house, and it would not relieve any project of its own connection design. The connection is still engineered for your site, your roof, and your wind loads.

Primary technical references: ASCE 7 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures); ACI 318 (Building Code Requirements for Structural Concrete); American Wood Council wood-frame construction and truss design guidance; the Florida Building Code and local wind requirements. The governing references for a specific project are set by the engineer of record.

Structural Questions

Are 3D printed concrete homes hurricane proof?

No structure is hurricane proof. That claim does not exist in engineering or building code. What the Coastal Monolithic wall system is: a monolithic concrete wall designed and engineered for high coastal wind loads, with the wall design, reinforcement, foundation, roof connections and openings brought together through project-specific engineering and local plan review. The jointless concrete wall has no mortar joints to fail, no wood framing to fracture, and no stucco seams to dislodge under wind pressure. The most hurricane-resistant residential structures share several characteristics: monolithic construction with no joints or seams, high-strength materials, a continuous load path from roof to foundation, and protected openings. In a high-wind event, the roof and the openings carry much of the outcome, which is why the whole assembly is engineered together. FEMA publishes safe-room guidance (FEMA P-361) for extreme-wind events; that guidance informs design, but FEMA does not certify the product. The honest language is this: designed for resilience, engineered to reduce vulnerability. Every project still requires project-specific engineering, and no structure eliminates all risk from a major storm.

What parts of the home are 3D printed?

The 3D printed system produces the structural exterior wall system: the full perimeter walls from the foundation base to the roof line. The printed wall is a structural assembly with provision in the wall build-up for the project insulation strategy and the exterior finish, delivered as one wall system. What is not 3D printed: the foundation slab, the roof system, interior partition walls, windows, doors, MEP systems, and interior finishes. Those are installed by standard trades after the wall system is complete. The printed concrete wall is the proposed scope; reinforcement, grout, insulation, moisture control, coatings and finishes depend on the engineered assembly and may require separate work. Interior partition walls are typically framed conventionally after the shell is enclosed, the same way they are in any concrete construction project.

Will a 3D printed home lower my homeowner insurance in Florida?

Florida homeowner insurance is among the most expensive in the nation, and construction type is one of several factors an insurer can weigh. Florida law requires insurers to offer wind mitigation credits based on the features documented on the Uniform Mitigation Verification Inspection, which include building code, region, roof slope, roof covering, roof deck attachment, roof-to-wall attachment, roof geometry, sealed roof deck, and opening protection. A printed concrete wall is a strong wall assembly, but insurance outcomes are not automatic and depend on the insurer, the home design, the location, and a licensed inspection. Coastal Monolithic does not promise insurance savings or quote a percentage, and we recommend getting a wind mitigation inspection early in planning. See our wind mitigation guide for a category-by-category walkthrough.

See all FAQs

Designing a roof connection on a printed wall?

If you are an engineer or a builder working through the connection detail, we can talk through how the wall, the reinforcement, and the roof framing are coordinated.
